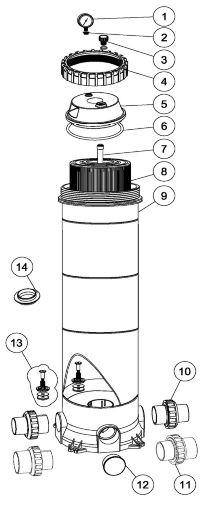

CF CARTRIDGE SERIES FILTER
Parts of Model: CF25 / CF50 / CF75 /CF100 / CF150 / CF200
| KEY NO. | PART NO. | DESCRIPTIONS | PIECE (S) REQUIRED |
|---|---|---|---|
| 1 | 06011032 | Maximum 40PSI Indication, Stainless Steel Casing | 1 |
| 2 | E190109 | Connector for Pressure Gauge/Stopper | 1 |
| 3 | 89010701 | Air Release Valve with O-ring | 1 |
| 4 | 01021006 | Ring Lock for Cartridge Filter | 1 |
| 5 | 01011002 | Cartridge Filter Lid | 1 |
| 6 | 02011034 | O-Ring for Lid | 1 |
| 7 | 89060103 | CF25 PVC Air Vent Pipe with Cover | 1 |
| 7 | 89060104 | CF50 PVC Air Vent Pipe with Cover | 1 |
| 7 | 89060105 | CF75 PVC Air Vent Pipe with Cover | 1 |
| 7 | 89060106 | CF100 PVC Air Vent Pipe with Cover | 1 |
| 7 | 89060107 | CF150 PVC Air Vent Pipe with Cover | 1 |
| 7 | 89060108 | CF200 PVC Air Vent Pipe with Cover | 1 |
| 8 | 88270101 | Element for CF25 | 1 |
| 8 | 88270102 | Element for CF50 | 1 |
| 8 | 88270103 | Element for CF75 | 1 |
| 8 | 88270104 | Element for CF100 | 1 |
| 8 | 88270105 | Element for CF150 | 1 |
| *8 | 88270106 | Element for CF200 | 2 |
| 9 | 89060116 | CF25 Cartridge Filter Body | 1 |
| 9 | 89060117 | CF50 Cartridge Filter Body | 1 |
| 9 | 89060118 | CF75 Cartridge Filter Body | 1 |
| 9 | 89060119 | CF100 Cartridge Filter Body | 1 |
| 9 | 89060120 | CF150 Cartridge Filter Body | 1 |
| 9 | 89060121 | CF200 Cartridge Filter Body | 1 |
| 10 | 89060114 | 1.5" Union for Cartridge Filter | 2 |
| 11 | 89060115 | 2.0" Union for Cartridge Filter | 2 |
| 12 | 01011015 | Plug | 1 |
| 13 | 89060109 | Pressure Release Valve | 1 |
| 14 | 01011016 | Locator only for CF200 | 1 |
Note: *8 and 14 are the complete set for Element for CF200
