อะไหล่ถังกรองสระว่ายน้ำ EMAUX Volumetric Series Filter (T450-T700B)
หมวดหมู่สินค้า: อะไหล่ถังกรองสระว่ายน้ำ
รหัส :
แบรนด์ : Emaux
ราคา : สอบถามเพิ่มเติมได้ที่
Line: @chainaris, โทร. 076-513100-4
Line: @chainaris, โทร. 076-513100-4
22 พฤศจิกายน 2565
ผู้ชม 314 ผู้ชม

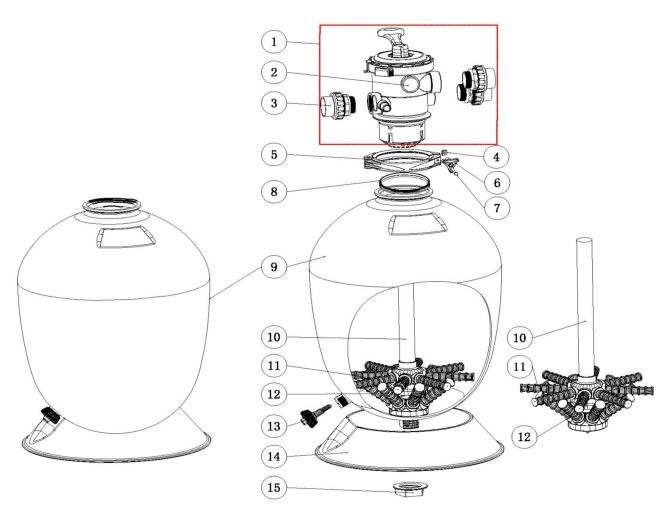

VOLUMETRIC SERIES FILTER
Parts of Model: T450 / T500 / T600 / T700 / T600B / T700B
| KEY NO. | PART NO. | DESCRIPTIONS | PIECE (S) REQUIRED |
|---|---|---|---|
| 1 | 88281550B | 6 Way 1.5" Top Mount Valve (Black) | 1 |
| 1 | 88281551B | 6 Way 2" Top Mount Valve (Black) | 1 |
| 2 | 06011031 | Maximum 100PSI Indication, Stainless Steel Casing | 1 |
| 2 | E190109 | Connector for Pressure Gauge/Stopper | 1 |
| 3 | 89280102B | 1.5" Union set (Black) with O-ring | 3 |
| 3 | 89280102W | 1.5" Union set (White) with O-ring | 3 |
| 3 | 89280103B | 2" Union set (Black) with O-ring | 3 |
| 3 | 89280103W | 2" Union set (White) with O-ring | 3 |
| 4 | 03021035 | M6 Nut | 1 |
| 5 | 89012512 | Clamp Kit | 1 |
| 6 | 01111101 | Star-Shaped Nut | 1 |
| 7 | 112000017 | M6x125mm Screws | 1 |
| 8 | 111000016 | O-Ring | 1 |
| 9 | E010501 | Filter Tank for T450 with base | 1 |
| 9 | E010502 | Filter Tank for T500 with base | 1 |
| 9 | E010503 | Filter Tank for T600/T600B with base | 1 |
| 9 | E010504 | Filter Tank for T700/T700B with base | 1 |
| 10 | E010118 | Lateral Assembly with Center Pipe for T450 | 1 |
| 10 | E010119 | Lateral Assembly with Center Pipe for T500 | 1 |
| 10 | E010120 | Lateral Assembly with Center Pipe for T600 | 1 |
| 10 | E010121 | Lateral Assembly with Center Pipe for T700 | 1 |
| 10 | E010122 | Lateral Assembly with Center Pipe for T600B | 1 |
| 10 | E010123 | Lateral Assembly with Center Pipe for T700B | 1 |
| 11 | 01172007 | Lateral (115mm) for T450/T500/T600/T700 | 8 |
| 11 | 01173078 | Lateral (148mm) for T600B/T700B | 8 |
| 12 | 01172008 | Lateral (126mm) for T450/T500/T600/T700/T600B/T700B | 8 |
| 13 | E010024 | Water Drain Set for T Series | 1 |
| 14 | 01112133 | Filter Base T450/T500 | 1 |
| 14 | 01112134 | Filter Base T600/T700/T600B/T700B | 1 |
| 15 | 01018066 | Nut for Filter Base | 1 |
Note: T450/T500/T600/T700 Should have 8pcs of lateral (115mm) and 8pcs of lateral (126mm)
T600B/T700B Should have 8pcs of lateral (148mm) and 8pcs of lateral (126mm)
