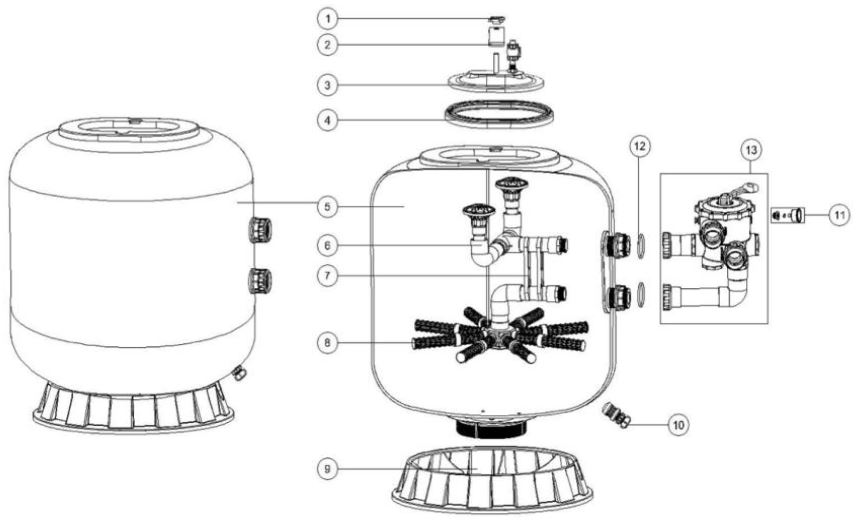

S SERIES FILTER
Parts of Model: S1000 / S1200
KEY NO. | PART NO. | DESCRIPTIONS | PIECE (S) REQUIRED |
---|---|---|---|
1 | 011111000 | Star-Shaped Nut | 1 |
2 | 4100076786 | Bow-Shaped Metal Bar | 1 |
3 | 01161006 | Manhole | 1 |
4 | 111292548 | Rubber Ring for Lid | 1 |
5 | 89011301 | S1000 Filter Tank with Base | 1 |
5 | 89011302 | S1200 Filter Tank with Base | 1 |
6 | 89011303 | The Inner Tank System for 1000 | 1 |
6 | 89011304 | The Inner Tank System for S1200 | 1 |
7 | 4110000990 | 2.0" Tank System Support | 1 |
8 | E010307 | Laterals (129mm & 185mm) for S1000 | 8 |
8 | E010308 | Laterals (129mm & 233mm) for S1200 | 1 |
9 | 01112038 | 32-40 inch Filter Base | 1 |
9 | 01112039 | Base for V1200 | 1 |
10 | 89010107 | Water Drain Set | 1 |
11 | 06011029 | Maximum 40PSI Indications, Stainless Steel Casing | 1 |
12 | 02011127 | O-Ring for Inlet & Outlet | 2 |
13 | 88280813W | 6 Way 2" Valve with Piping Kit, 2" union set x 3 and pressure gauge (White) | 1 |
