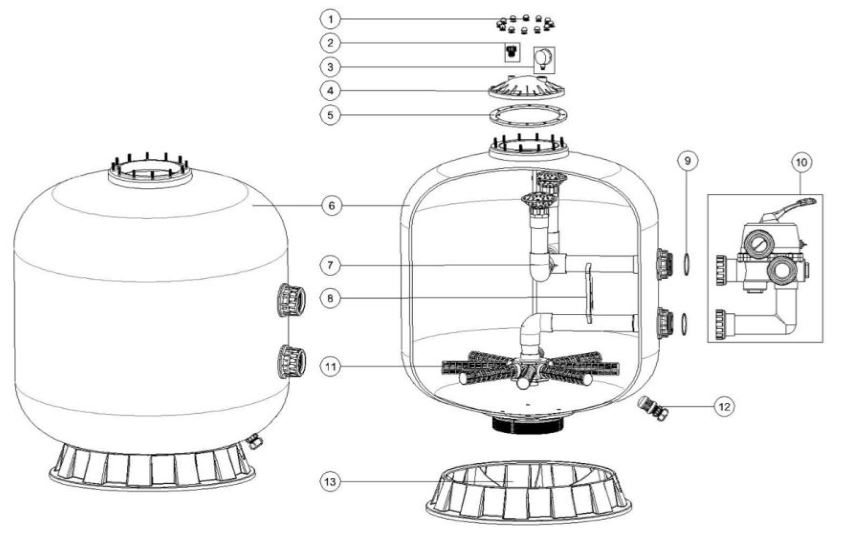

S SERIES FILTER
Parts of Model: S700B / S800 / S900
| KEY NO. | PART NO. | DESCRIPTIONS | PIECE (S) REQUIRED |
|---|---|---|---|
| 1 | 89010601 | Nut with washer | 12 |
| 2 | 89010701 | Air Release Valve with O-ring | 1 |
| 3 | 06011032 | Maximum 40PSI Indication, Stainless Steel Casing | 1 |
| 4 | 01172005 | Lid (Grey Colour) | 1 |
| 5 | 0201126 | Filter Neck Gasket | 1 |
| 6 | 89011202 | S700B Filter Tank | 1 |
| 6 | 89011208 | Filter Tank with Base for S800 | 1 |
| 6 | 89011209 | Filter Tank with Base for S900 | 1 |
| 7 | 89011203 | The Inner Tank System for S700 (B) | 1 |
| 7 | 89011210 | The Inner Tank System for S800 | 1 |
| 7 | 89011211 | The Inner Tank System for S900 | 1 |
| 8 | 01111090 | 2.0" Tank System Support | 1 |
| 9 | 02011127 | O-Ring for Inlet & Outlet | 2 |
| 10 | 88280813W | 6 Way 2" Valve with piping Kit, 2" union set x 3 and pressure gauge (White) | 1 |
| 11 | 01172010 | Laterals (185mm) | 8 |
| 11 | 01172011 | Laterals (233mm) | 8 |
| 12 | 89010107 | Water Drain Set | 1 |
| 13 | 01111062 | 21-28inch Filter Base | 1 |
| 13 | 01112038 | 30-40inch Filter Base | 1 |
Note: 11* 01172010 Laterals (185mm) is for S700B
11* 01172010 Laterals (233mm) is for S800 & S900
