S SERIES FILTER

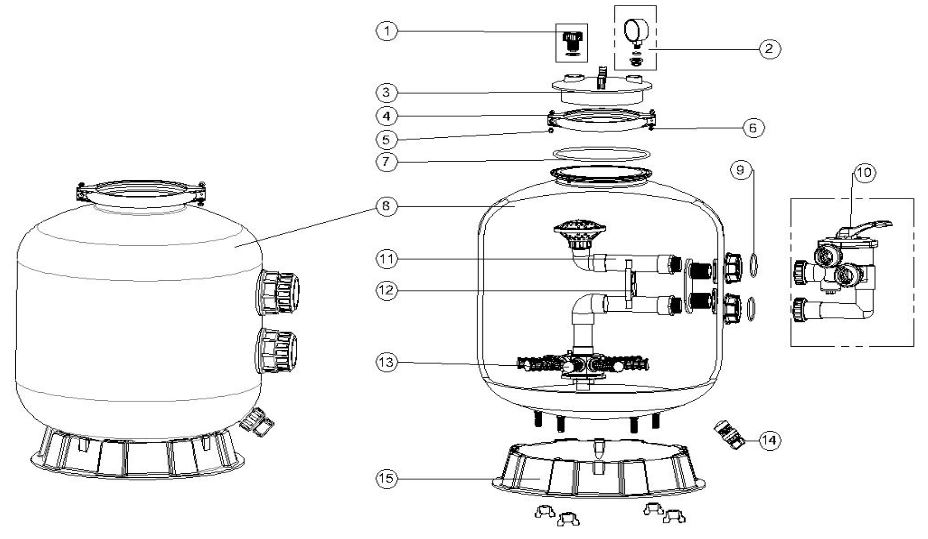

Parts of Model: S450 / S500 / S650 / S700
KEY NO. | PART NO. | DESCRIPTIONS | PIECE (S) REQUIRED |
---|---|---|---|
1 | 89010701 | Air Release Valve with O-ring | 1 |
2 | 06011032 | Maximum 40PSI Indication, Stainless Steel Casing | 1 |
3 | 01201022 | Lid (Transparent) | 1 |
4 | 01271010 | Clamp Lock | 2 |
5 | 03021035 | M6 Nut | 1 |
6 | 03011095 | Screw | 1 |
7 | 02011134 | O-Ring for Filter Neck | 1 |
8 | 89010706 | Filter Tank for S450 | 1 |
8 | 89010705 | Filter Tank for S500 | 1 |
8 | 89010704 | Filter Tank for S650 | 1 |
8 | 89010703 | Filter Tank for S700 | 1 |
9 | 02011003 | O-Ring for 1.5" adapter | 2 |
10 | 88280811W | 6 Way 1.5" Valve with Piping Kit, 1.5" Union set x 3 and pressure gauge (White) | 1 |
11 | 89010708 | The Inner Tank System for S450 | 1 |
11 | 89010709 | The Inner Tank System for S500 | 1 |
11 | 89010710 | The Inner Tank System for S650 | 1 |
11 | 89010711 | The Inner Tank System for S700 | 1 |
12 | 01111046 | 1.5" Tank System Support | 1 |
13 | 01172007 | Laterals (115mm) | 8 |
13 | 01172008 | Laterals (126mm) | 8 |
14 | 89010107 | Water Drain Set | 1 |
15 | 01111059 | 16-21inch Filter Base | 1 |
15 | 01111062 | 21-28inch Filter Base | 1 |
Note: 13* 01172007 Laterals (115mm) for S450
13* 01172008 Laterals (126mm) for S500-S700
