V SERIES FILTER

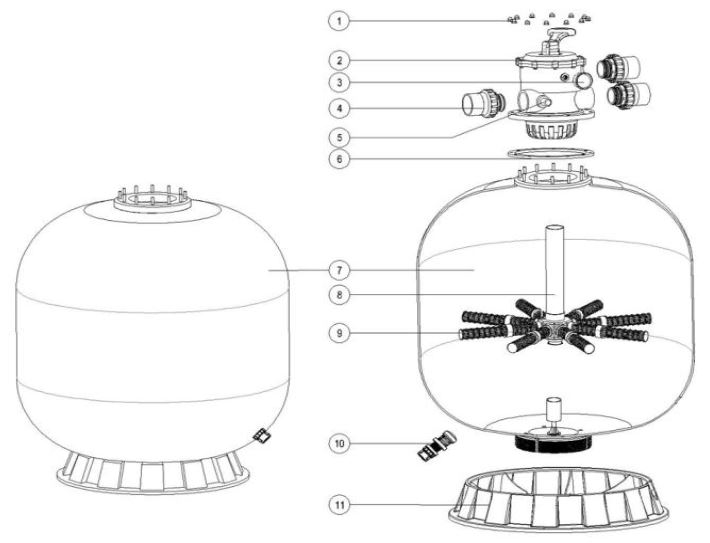

Parts of Model: V700B / V800 / V900 / V1000 / V1200
KEY NO. | PART NO. | DESCRIPTIONS | PIECE (S) REQUIRED |
---|---|---|---|
1 | 89010601 | Nut with washer | 12 |
2 | 88280351B | 6 Way 2" Valve with 2" union set x 3 and pressure gauge (Black) | 1 |
3 | 06011029 | Maximum 40PSI Indication, Stainless Steel Casing | 1 |
4 | 89280103B | 2.0" Union with O-Ring (Black) | 3 |
5 | 89280104 | Sight Glass with O-Ring | 1 |
6 | 02011126 | Filter Neck Gasket | 1 |
7 | 89010612 | V700B Filter Tank with Base | 1 |
7 | 89010603 | V800 Filter Tank with Base | 1 |
7 | 89010604 | V900 Filter Tank with Base | 1 |
7 | 89010605 | V1000 Filter Tank with Base | 1 |
7 | 89010606 | V1200 Filter Tank with Base | 1 |
8 | 89010611 | V700B Standpipe with Hub | 1 |
8 | 89010607 | V800 Standpipe with Hub | 1 |
8 | 89010608 | V900 Standpipe with Hub | 1 |
8 | 89010609 | V1000 Standpipe with Hub | 1 |
8 | 89010610 | V1200 Standpipe with Hub | 1 |
9 | 01172010 | Laterals (185mm) | 8 |
9 | 01172011 | Laterals (233mm) | 8 |
9 | E010307 | Laterals (129mm & 185mm) | 8 |
9 | E010308 | Laterals (129mm & 233mm) | 8 |
10 | 89010107 | Water Drain Set | 1 |
11 | 01111062 | 21-28inch Filter Base | 1 |
11 | 01112038 | 32-40inch Filter Base | 1 |
11 | 01112039 | Base for V1200 | 1 |
Note: 9* 01172010 is laterals (185mm) for V700B
9* 01172011 is laterals (233mm) for V800 & V900
9* 89010613 Laterals (129mm & 185mm) for V1000
9* 89010614 Laterals (129mm & 233mm) for V1200
