อะไหล่ถังกรองสระว่ายน้ำ EMAUX V Series Filter (V350-V700)
หมวดหมู่สินค้า: อะไหล่ถังกรองสระว่ายน้ำ
รหัส :
แบรนด์ : Emaux
ราคา : สอบถามเพิ่มเติมได้ที่
Line: @chainaris, โทร. 076-513100-4
Line: @chainaris, โทร. 076-513100-4
21 พฤศจิกายน 2565
ผู้ชม 287 ผู้ชม

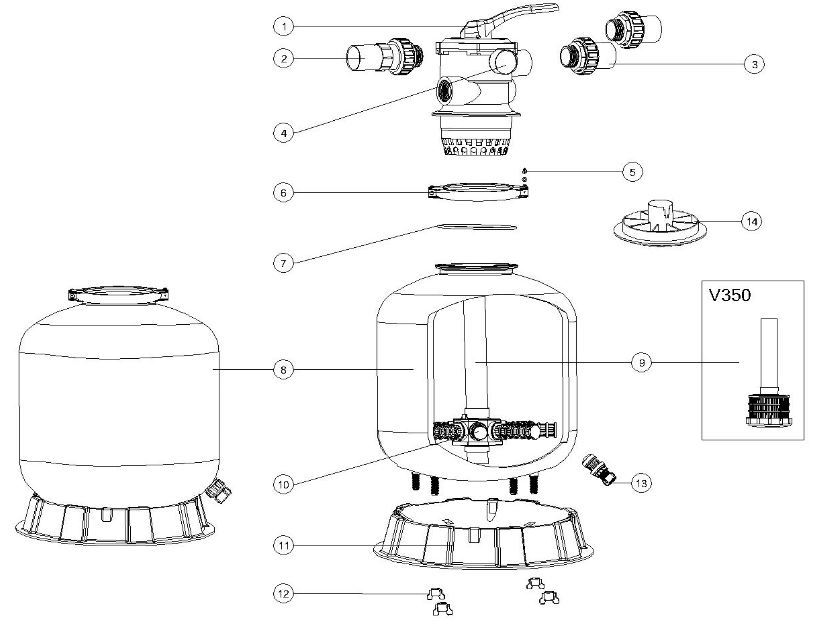

V SERIES FILTER
Parts of Model: V350 / V400 / V450 / V500 / V650 / V700
| KEY NO. | PART NO. | DESCRIPTIONS | PIECE (S) REQUIRED |
|---|---|---|---|
| 1 | 88281550B | 6 Way 1.5" Valve with 1.5" union set x 3 and pressure gauge (Black) | 1 |
| 2 | 89280101B | 1.5" union with sight glass with O-ring (Black) | 1 |
| 3 | 89280102B | 1.5" union set with O-ring (Black) | 2 |
| 4 | 06011029 | Maximum 40PSI INdication, Stainless Steel Casing | 1 |
| 4 | 01111048 | Connector for Pressure Gauge/Stopper | 1 |
| 5 | 89010119 | M6*50 Screws with Nut | 2 |
| 6 | E010001 | Clamp Lock | 2 |
| 7 | 02011134 | O-Ring for Filter Neck | 1 |
| 8 | 89010114 | V350 Filter Tank | 1 |
| 8 | 89010113 | V400 Filter Tank | 1 |
| 8 | 89010112 | V450 Filter Tank | 1 |
| 8 | 89010111 | V500 Filter Tank | 1 |
| 8 | 89010110 | V650 Filter Tank | 1 |
| 8 | 89010109 | V700 Filter Tank | 1 |
| 9 | 89010106 | V350 Lateral Assembly with Center Pipe | 1 |
| 9 | 89010118 | V400 Standpipe with Hub | 1 |
| 9 | 89010105 | V450 Lateral Assembly with Center Pipe | 1 |
| 9 | 89010104 | V500 Lateral Assembly with Center Pipe | 1 |
| 9 | 89010103 | V650 Lateral Assembly with Center Pipe | 1 |
| 9 | 89010102 | V700 Standpipe with Hub | 1 |
| 10 | 01172007 | Laterals (115mm) | 8 |
| 10 | 01172008 | Laterals (126mm) | 8 |
| 11 | 01111052 | V/P350 Filter Base | 1 |
| 11 | 01111059 | 16-21 inch Filter Base | 1 |
| 11 | 01111062 | 21-28" Filter Base for V500/ V650/ V700 | 1 |
| 12 | 01181052 | Fastener for Filter Base | 4 |
| 13 | 89010107 | Water Drain Set | 1 |
| 14 | 01015006 | Sand Diverter (Black) for 1.5" | 1 |
Note: 10* 01172007 is laterals (115mm) for V350-V450
10* 01172008 is laterals (126mm) for V500-V700
