MFS SERIES FILTER

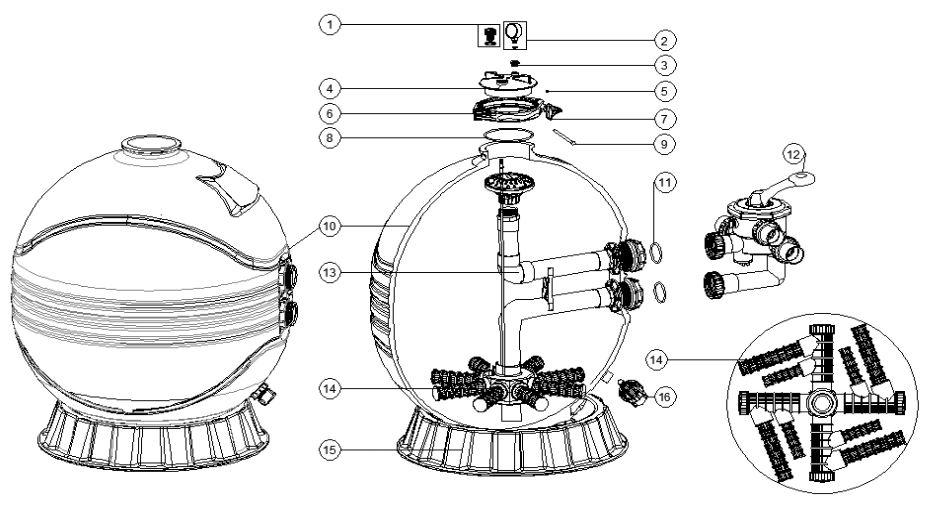

Parts of Model: MFS17 / MFS20 / MFS24 / MFS27A / MFS31A
KEY NO. | PART NO. | DESCRIPTIONS | PIECE (S) REQUIRED |
---|---|---|---|
1 | 89010701 | Air Release Valve with O-ring | 1 |
2 | 06011032 | Maximum 40PSI Indication, Stainless steel casing | 1 |
3 | E190109 | Connector for Pressure Gauge/Stopper | 1 |
4 | 01201022 | Lid (Transparent) | 1 |
5 | 03021035 | M6 Nut | 1 |
6 | 89012512 | Clamp Kit | 1 |
7 | 01111101 | Star-Shaped Nut | 1 |
8 | 02010007 | O-Ring | 1 |
9 | 112000017 | M6x110mm Screws | 1 |
10 | 89012606 | 17" Tank Assembly | 1 |
10 | 89012607 | 20" Tank Assembly | 1 |
10 | 89012608 | 24" Tank Assembly | 1 |
10 | 89012609 | 27" Tank Assembly for MFS27A | 1 |
10 | 89012620 | 27" Tank Assembly for MFS27 | 1 |
10 | 89012610 | 31" Tank Assembly for MFS31A | 1 |
10 | 89012621 | 31" Tank Assembly for MFS31 | 1 |
10 | 89012622 | 35" Tank Assembly | 2 |
11 | 02011003 | O-Ring for 1.5" adaptor | 2 |
11 | 111202472 | O-Ring for 2" Connector | 1 |
12* | 88280805 | 1.5" Side Mount Valve (Black or White Colour) for MFS17/ MFS20/ MFS24/ MFS27A/ MFS31A | 1 |
12* | 88280812B | 2" Side Mount Valve (Black or White Colour) for MFS27/ MFS31/ MFS35 | 1 |
13 | 89012601 | The Inner Tank System for MFS17 | 1 |
13 | 89012602 | The Inner Tank System for MFS20 | 1 |
13 | 89012603 | The Inner Tank System for MFS24 | 1 |
13 |
89012604 | The Inner Tank System for MFS27A | 1 |
13 |
89012605 | The Inner Tank System for MFS31A | 1 |
13 |
89012617 | The Inner Tank System for MFS27 | 1 |
13 |
89012618 | The Inner Tank System for MFS31 | 1 |
13 |
89012619 | The Inner Tank System for MFS35 | * |
14 |
01172007 | Laterals (115mm) | * |
14 |
01172008 | Laterals (126mm) | * |
14 |
01172010 | Laterals (185mm) | 1 |
15 |
01111059 | 16-18inch Filter Base | 1 |
15 |
01111062 | 21-28inch Filter Base | 1 |
15 |
01112037 | 31-35inch Filter Base | 1 |
16 |
89011601 | Water Drain Set |
Note: 13* MFS17/ MFS20 Should have 8pcs of Lateral (115mm)
13* MFS24/ MFS27A/ MFS31A Should have 8pcs of Lateral (126mm)
13* MFS27/ MFS31/ MFS35 Should have 4pcs of Lateral (115mm) and 4pcs of Lateral (180mm)
