อะไหล่ปั๊มสระว่ายน้ำ ASTRAL POOL CTX Pump
หมวดหมู่สินค้า: อะไหล่ปั๊มสระว่ายน้ำ
รหัส :
แบรนด์ : Astral Pool
ราคา : สอบถามเพิ่มเติมได้ที่
Line: @chainaris, โทร. 076-513100-4
Line: @chainaris, โทร. 076-513100-4
29 พฤศจิกายน 2565
ผู้ชม 610 ผู้ชม

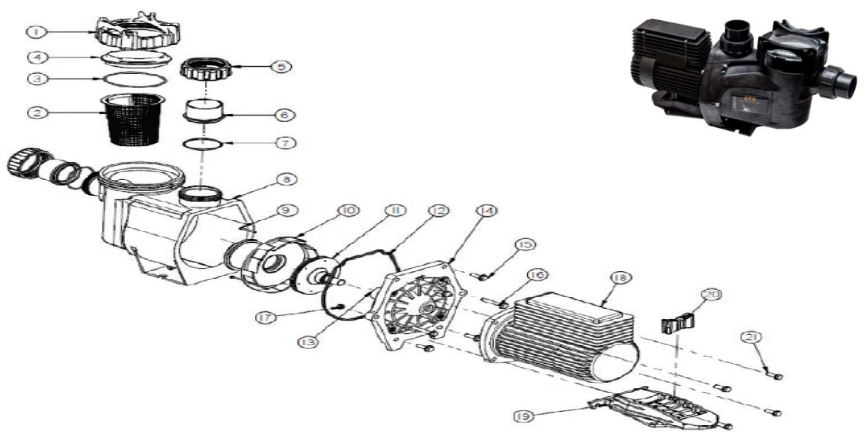

CTX PUMP
| KEY NO. | PART NO. | DESCRIPTIONS | PACK | QTY. / PACK |
|---|---|---|---|---|
| 1 | SP40089 | Lid Complete with O-Ring | 1 | 1 |
| 2 | 40065 | Basket | 1 | 1 |
| 3 | 70006 | Lid O-Ring | 1 | 1 |
| 5 | 950919 | Lock Nut | 1 | 1 |
| 6 | 950920 | 2" (50 mm) Glue in Pipe Union | 1 | 1 |
| 7 | 7003 | O-Ring | 1 | 2 |
| 8 | 40097 | Wetend Complete with Basket and Drain Plugs | 1 | 1 |
| 9 | 40165 | Diffuser Retaining Screws | 1 | 2 |
| 10 | 40071A | Diffuser CTX 180,280,360,400 | 1 | 1 |
| 11 | 40060R | Impeller CTX 180 | 1 | 1 |
| 11 | 40060S | Impeller CTX 280 | 1 | 1 |
| 11 | 40060F | Impeller CTX 360 | 1 | 1 |
| 11 | 40060G | Impeller CTX 400 | 1 | 1 |
| 11 | 40060V | Impeller CTX 500 | 1 | 1 |
| 11 | 40060W | Impeller CTX 610 | 1 | 1 |
| 12 | 70022 | O-Ring (Seal Plate) | 1 | 1 |
| 13 | PS3868 | Mechanical Seal - BP02-USA-0191 | 1 | 1 |
| 14 | 40098 | Seal Palte | 1 | 1 |
| 15 | 78772 | Seal Plate to Wetend Bolts | 1 | 2 |
| 17 | 40272 | Nut - Brass For Bolts | 1 | 1 |
| 18 | 71310 | Motor CTX 180 | 1 | 1 |
| 18 | 71313 | Motor CTX 280, 360 | 1 | 1 |
| 18 | 71314 | Motor CTX 400 | 1 | 1 |
| 18 | 71319 | Motor CTX 500 | 1 | 1 |
| 18 | 71331 | Motor CTX 610 | 1 | 1 |
| 19 | 4005002 | Motor Foot | 1 | 1 |
| 20 | 40056 | Motor Foot Rubber Insert | 1 | 1 |
| 21 | 40156 | Bolts - Motor to Seal Plate | 1 | 1 |
| Not Show | LABEL264 | CTX Label | 1 | 1 |
| Not Show | 7820702 | Drain Plug | 1 | 1 |
| Not Show | 78103 | O-Ring | 1 | 2 |
| Not Show | 950919 | Lock Nut | 1 | 1 |
| Not Show | 598770 | Check Valve Assembly | 1 | 1 |
| Not Show | INST243 | Instruction Manual | 1 | 1 |
| Not Show | 78303 | Component Bag | 1 | 1 |
