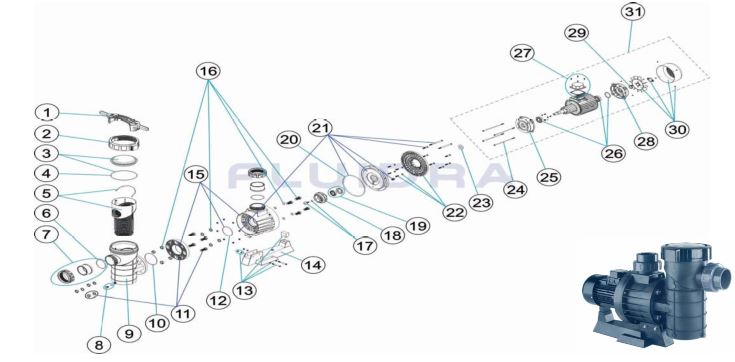

MAXIM PUMP
KEY NO. | PART NO. | DESCRIPTIONS | PACK | QTY. / PACK |
---|---|---|---|---|
1 | 4405010379 | Key for Pre-Filter Nut | 1 | 1 |
2 | 4404180102 | Threaded Lid Collar | 1 | 1 |
3 | 4405010302 | Pre-Filter Cover | 1 | 1 |
4 | 4405010373 | O-Ring D 192x5 | 1 | 2 |
5 | 4405010304 | Pre-Filter Basket | 1 | 1 |
6 | 4405010375 | Suction / Return Gaskets | 1 | 2 |
7 | 4405010306 | D.90 Union Fittings | 1 | 1 |
7 | 4405010764 | 3" Union Fittings | 1 | 1 |
8 | 4404121107 | Plug 1/4" | 1 | 2 |
9 | 4405040701 | Pre-Filter 8L | 1 | 1 |
10 | 4405010377 | O-Ring D 124x3,5 | 1 | 2 |
11 | 4405010380 | Flange Fixing + Screws | 1 | 1 |
12 | 4405010376 | O-Ring D 100x4 | 1 | 2 |
13 | 4405010313 | Pump Base Fittings <= 4,5 HP | 1 | 1 |
13 | 4405010314 | Pump Base Fittings 5,5 HP | 1 | 1 |
14 | 4405010315 | Pump Base | 1 | 1 |
15 | 4405010307 | Pump Body 3,5 HP | 1 | 1 |
15 | 4405010308 | Pump Body 4,5 HP | 1 | 1 |
15 | 4405010309 | Pump Body 5,5 HP | 1 | 1 |
16 | 4405010311 | Back Plate Screws | 1 | 1 |
17 | 4405010338 | Impeller Cover | 1 | 2 |
18 | 4405010323 | Impeller 3,5 HP III 50 HZ | 1 | 1 |
18 | 440501765 | Impeller 3,5 HP III 60 HZ | 1 | 1 |
18 | 4405010324 | Impeller 4,5 HP III 50 HZ | 1 | 1 |
18 | 4405030126 | Impeller 3,5 HP 60 HZ | 1 | 1 |
18 | 4405010325 | Impeller 5,5 HP III 50 HZ | 1 | 1 |
18 | 4405010766 | Impeller 5,5 HP III 60 HZ | 1 | 1 |
19 | 4405010322 | Mechanical Seal | 1 | 1 |
20 | 4405010378 | O-Ring D 226x6 | 1 | 1 |
21 | 4405010334 | Mechanical Seal Plate 3,5 HP | 1 | 1 |
21 | 4405010335 | Mechanical Seal Plate 4,5 - 5,5 HP | 1 | 1 |
22 | 4405010332 | Motor Clamp 3,5 HP | 1 | 1 |
22 | 4405010333 | Motor Clamp 4,5 - 5,5 HP | 1 | 1 |
23 | 4405010374 | Deflector Washer 24x50x6 4HP | 1 | 2 |
24 | 4405010361 | Motor Ties 3,5 HP VAR. | 1 | 1 |
24 | 4405010362 | Motor Ties 4,5 - 5,5 HP VAR. | 1 | 1 |
25 | 4405010369 | Front Motor Cover 2,5 - 3 HP (Bonora) | 1 | 1 |
25 | 4405010381 | Front Motor Cover 2,5 - 3 HP (Vernis) | 1 | 1 |
25 | 4405030121 | Front Motor Cover 4,5 - 5,5 HP | 1 | 1 |
26 | 4405010171 | Bearings Assembly 6205 2RS 3,5 HP | 1 | 1 |
26 | 4405010342 | Motor Bearings 5,5 HP Merc. | 1 | 1 |
27 | 4405010545 | Connection Box Assembly 3,5 HP (VERNIS) | 1 | 1 |
27 | 4405010157 | Terminal Box Assembly C. 80-90 III | 1 | 1 |
27 | 4405030119 | Connection Box Assembly 2,5 - 3 - 4,5 HP (BONORA) | 1 | 1 |
28 | 4405010367 | Rear Motor Cover 3,5 HP (BONARA) | 1 | 1 |
28 | 4405010382 | Rear Motor Cover 2,5-3-3,5 HP (VERNIS) | 1 | 1 |
28 | 4405030117 | Rear Motor Cover 4,5 - 5,5 HP | 1 | 1 |
29 | 4405010176 | V-Ring VA-2, 5-3 HP II | 1 | 1 |
29 | 4405010571 | V-Ring VA-30 | 1 | 1 |
30 | 4405010383 | Fan Cover Assembly 3,5 (VERNIS) | 1 | 1 |
30 | 4405010384 | Fan Cover Assembly 4,5 - 5,5 HP | 1 | 1 |
31 | 25493R0375 | Motor 3,5 HP III | 1 | 1 |
31 | 25494R0375 | Motor 4,5 HP III | 1 | 1 |
31 | 25495R0375 | Motor 5,5 HP III | 1 | 1 |
