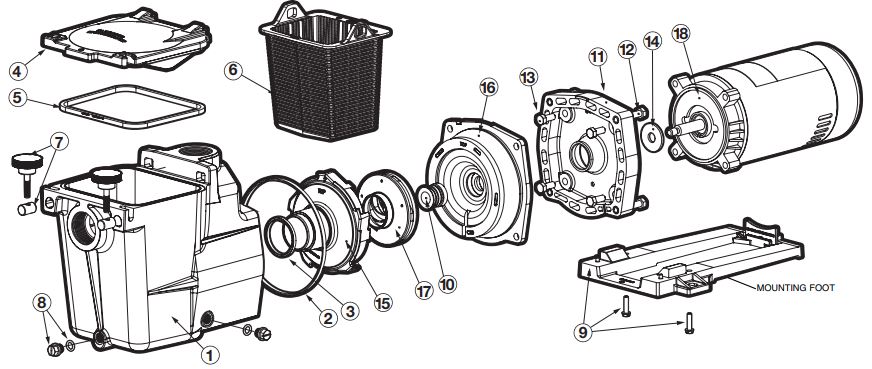

Super Pump Parts
| KEY NO. | PART NO. | DESCRIPTIONS | NOTE |
|---|---|---|---|
| 1 | SPX1620AA | Pump Housing / Strainer 2" x 2" | |
| 2 | SPX1600T | Housing Gasket | |
| 3 | SPX1600R | Diffuser Gasket | |
| 4 | SPX1600D | Strainer Cover | |
| 5 | SPX1600S | Strainer Cover O-ring | |
| 6 | SPX1600M | Basket | |
| 7 | SPX1600PN | Hand Knob Kit (Includes Swivel Nut and Hand Knob) | |
| 8 | SPX1700FG | 1⁄4" Drain Plug with Gasket (1992 and later) | |
| 8 | SPX1600Z52 | Mounting Foot Cap Screw (Set of 2 – 2 Sets Required) | |
| 10 | SPX1600Z2 | Seal Assembly | |
| 11 | SPX1600F5 | Motor Mounting Plate | |
| 12 | SPX1600Z4 | Housing Cap Screw | |
| 13 | SPX0125Z44 | Motor Cap Screw (Set of 4) | |
| 14 | SPX1025F | Slinger | |
| 15 | SPX2600B | Diffuser | For 3/4 & 1.5HP. |
| 15 | SPX1616B | Diffuser | For 2HP. |
| 16 | SPX2600E5 | Seal Plate | For 3/4 & 1.5HP. |
| 16 | SPX1611E5 | Sale Plate | For 2HP. |
| 17 | SPX2607C | Impeller | For 3/4HP. |
| 17 | SPX2605C | Impeller | For 3/4HP. |
| 17 | SPX2610C | Impeller |
For 1HP. |
| 17 | SPX2615C | Impeller |
For 1.5HP. |
| 17 | SPX1621C | Impeller |
For 2HP. |
| 17 | SPX2600G1 | Mounting Foot with Adapter and Screws |
