อะไหล่ปั๊มสระว่ายน้ำ EMAUX SR Series
หมวดหมู่สินค้า: อะไหล่ปั๊มสระว่ายน้ำ
รหัส :
แบรนด์ : Emaux
ราคา : สอบถามเพิ่มเติมได้ที่
Line: @chainaris, โทร. 076-513100-4
Line: @chainaris, โทร. 076-513100-4
17 พฤศจิกายน 2565
ผู้ชม 492 ผู้ชม

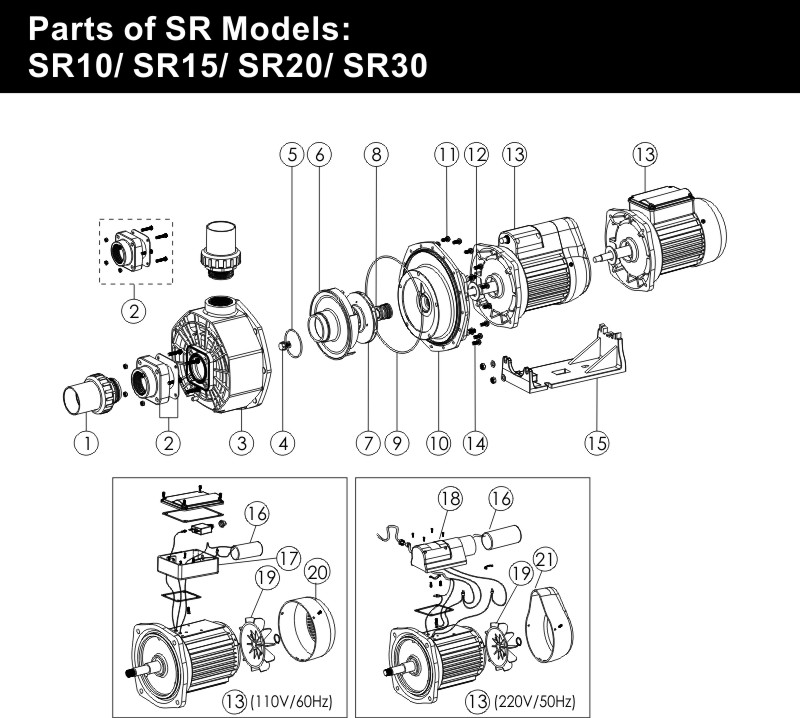

| KEY NO. | PART NO. | DESCRIPTIONS | PRICE (S) REQUIRED |
|---|---|---|---|
| 1* | 89280103B | 2.0" Union (Black/ White Colour) | 2 |
| 2 | 89023601 | Connecting Fitting | 1 |
| 3 | 89021308 | Pump body for SB, SR | 1 |
| 4 | 89021309 | Screw for Impeller with O-Ring | 1 |
| 5 | 02011108 | O-Ring for Diffuser | 1 |
| 6 | 01111015 | Diffuser | 1 |
| 7 | 01311001 | Impeller SR10 (110V/60HZ) / (220V/60HZ) | 1 |
| 7 | 01311002 | Impeller SR20 (110V/60HZ) / (220V/60HZ) | 1 |
| 7 | 01311003 | Impeller SR20 (220V/50HZ) / (380V/50HZ) | 1 |
| 7 | 01311004 | Impeller SR10 (220V/50HZ) and (380V/50HZ) / SR15 (110V/60HZ) and (220V/60HZ) | 1 |
| 7 | 01311005 | Impeller SR15 (220V/50HZ) and (380V/50HZ) / SR30 (110V/60HZ) and (220V/60HZ) | 1 |
| 7 | 01311006 | Impeller SR30 (220V/50HZ) and (380V/50HZ) | 1 |
| 8 | 04015046 | 3/4" Mechanical Seal | 1 |
| 9 | 02011093 | O-Ring for Flange | 1 |
| 10 | 01021013 | Pump Flange for SB, SR | 1 |
| 11 | 03011080 | M6 x 15 Hexagonal Bolt | 16 |
| 12 | 02011099 | Motor Silnger for SR10/ SR15 | 1 |
| 12 | 02011101 | Motor Silnger for SR20/ SR30 | 1 |
| 13 | 89021301 | Motor SB10 or SR10 (220V/50HZ) | 1 |
| 13 | 89021302 | Motor SB15 or SR15 (220V/50HZ) | 1 |
| 13 | 89021303A | Motor SB20 or SR20 (220V/50HZ) | 1 |
| 13 | 89021304 | Motor SB30 or SR30 (220V/50HZ) | 1 |
| 13 | 89021401 | Motor SB10 or SR10 (220V/60HZ) | 1 |
|
13 |
89021402 | Motor SB15 or SR15 (220V/60HZ) | 1 |
| 13 | 89021403 | Motor SB20 or SR20 (220V/60HZ) | 1 |
| 13 | 89021404 | Motor SB30 or SR30 (220V/60HZ) | 1 |
| 13 | 89021601 | Motor SB10 or SR10 (380V/50HZ) | 1 |
| 13 | 89021602 | Motor SB15 or SR15 (380V/50HZ) | 1 |
| 13 | 89021603 | Motor SB20 or SR20 (380V/50HZ) | 1 |
| 13 | 89021604 | Motor SB30 or SR30 (380V/50HZ) | 1 |
| 13 | 89021501 | Motor SB10 or SR10 (110V/60HZ) | 1 |
| 13 | 89021502 | Motor SB15 or SR15 (110V/60HZ) | 1 |
| 13 | 89021503 | Motor SB20 or SR20 (110V/60HZ) | 1 |
| 13 | 89021504 | Motor SB30 or SR30 (110V/60HZ) | 1 |
| 14 | 89021310 | M8*20 Bolt for motor with washer | 4 |
| 15 | 01111032 | Base with Nut & Washer for SB/SR10 / SB/SR15 | 1 |
| 15 | 01111031 | Base with Nut & Washer for SB/SR20 / SB/SR30 | 1 |
| 16 | 01021021 | Opening Key | 1 |
| 17 | 04016014 | Capacitor for SB/SR10, SB15 | 1 |
| 17 | 04016015 | Capacitor for SB/SR20 & SC/EPH200 & SPH200 Pump | 1 |
| 17 | 04016016 | Capacitor for SB/SR30 EPH300,EPH400 & SPH300 Pump | 1 |
| 17 | 04016022 | Capacitor for SR/SB10-15 & SC100-150 Pump 110V | 1 |
| 17 | 04016023 | Capacitor for SR/SB20-30 & SC200 Pump 110V | 1 |
| 18 | 89021505 | Cable Box | 1 |
| 19 | 89021312 | Cable Box for SR Pump 220V/50HZ / 220V/60HZ / 380V/50HZ. | 1 |
| 20 | 01031007 | Cooling fan for SC SB/SR10 / SB/SR15 | 1 |
| 20 | 01031006 | Cooling fan for EPH SB/SR20 / SB/SR30 | 1 |
| 21 | 01031001 | Fan Cover for EPH SB/SR20 / SB/SR30 | 1 |
| 21 | 01031002 | Fan Cover for SB/SR20 / SB/SR15 Pump | 1 |
| 22 | 01031008 | Fan Cover for SB/SR20 / SB/SR30 Pump | 1 |
| 22 | 01031009 | Fan Cover for SB/SR10 / SB/SR15 Pump | 1 |
Note: 1* 89280103B is 2" Union in Black Colour
1* 89280103W is 2" Union in White Colour
