อะไหล่ปั๊มสระว่ายน้ำ EMAUX SB Series
หมวดหมู่สินค้า: อะไหล่ปั๊มสระว่ายน้ำ
รหัส :
แบรนด์ : Emaux
ราคา : สอบถามเพิ่มเติมได้ที่
Line: @chainaris, โทร. 076-513100-4
Line: @chainaris, โทร. 076-513100-4
17 พฤศจิกายน 2565
ผู้ชม 378 ผู้ชม

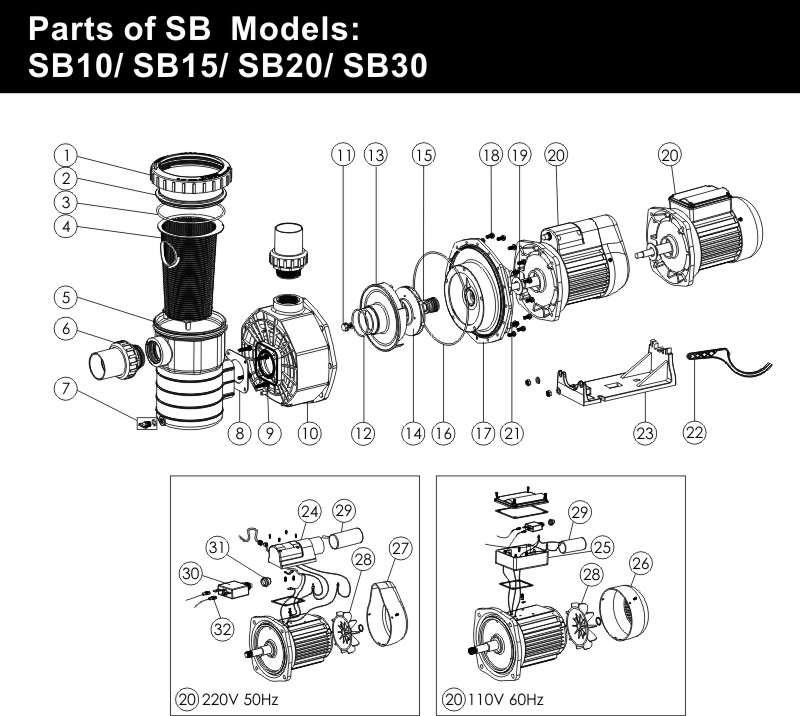

| KEY NO. | PART NO. | DESCRIPTIONS | PRICE (S) REQUIRED |
|---|---|---|---|
| 1 | 01021008 | Nut for Lid | 1 |
| 2 | 01041022 | Transparent Lid | 1 |
| 3 | 02010248 | O-Ring for Lid |
1 |
| 4 | 01111030 | Basket | 1 |
| 5 | 89021305 | Pre-Filter Body | 1 |
| 6* | 89280103 | 2.0" Union (Black/ White Colour) | 2 |
| 7 | 89021307 | Drain Plug with O-Ring |
1 |
| 8 | 02011115 | Square Gasket |
1 |
| 9 | 03011083 | M6 x 30 Screw for Pump Body |
4 |
| 10 | 89021308 | Pump body for SB, SR |
1 |
| 11 | 89021309 | Screw for Impeller with O-Ring |
1 |
| 12 | 02011108 | O-Ring for Diffuser |
1 |
| 13 | 01111015 | Diffuser |
1 |
| 14 | 01311001 | Impeller SB10 (110V/60HZ) and (220V/60HZ) | 1 |
| 14 | 01311002 | Impeller SB20 (110V/60HZ) and (220V/60HZ) | 1 |
| 14 | 01311003 | Impeller SB/ SR20 (220V/50HZ) and (380V/50HZ) | 1 |
| 14 | 01311004 | Impeller SB/ SR10 (220V/50HZ) and (380V/50HZ) / SB15 (110V/60HZ) and (220V/60HZ) | 1 |
| 14 | 01311005 | Impeller SB/ SR15 (220V/50HZ) and (380V/50HZ) / SB30 (110V/60HZ) and (220V/60HZ) | 1 |
| 16 | 04015046 | 3/4" Mechanical seal | 1 |
| 17 | 01021013 | Pump Flange for SB/ SR | 1 |
| 18 | 03011080 | M6 x 15 Hexagonal Bolt | 16 |
| 19 | 02011096 | Motor Slinger | 1 |
| 20 | 89021301 | Motor SB/ SR10 (220V/50HZ) | 1 |
| 20 | 89021302 | Motor SB/ SR15 (220V/50HZ) | 1 |
| 20 | 89021303A | Motor SB/ SR20 (220V/50HZ) | 1 |
| 20 | 89021304 | Motor SB/ SR30 (220V/50HZ) | 1 |
| 20 | 89021401 | Motor SB/ SR10 (220V/60HZ) | 1 |
| 20 | 89021402 | Motor SB/ SR15 (220V/60HZ) | 1 |
| 20 | 89021403 | Motor SB/ SR20 (220V/60HZ) | 1 |
| 20 | 89021404 | Motor SB/ SR30 (220V/60HZ) |
1 |
| 20 | 89021601 | Motor SB/ SR10 (380V/50HZ) |
1 |
| 20 | 89021602 | Motor SB/ SR15 (380V/50HZ) |
1 |
| 20 | 89021603 | Motor SB/ SR20 (380V/50HZ) |
1 |
| 20 | 89021604 | Motor SB/ SR30 (380V/50HZ) |
1 |
| 20 | 89021501 | Motor SB/ SR10 (110V/60HZ) |
1 |
| 20 | 89021502 | Motor SB/ SR15 (110V/60HZ) |
1 |
| 20 | 89021503 | Motor SB/ SR20 (110V/60HZ) |
1 |
| 20 | 89021504 | Motor SB/ SR30 (110V/60HZ) |
1 |
| 21 | 89021310 | M8*20 Bolt for motor wish washer |
4 |
| 22 | 01021021 | Opening key |
1 |
| 23 | 01111032 | Base with Nut & Washer for SB10/ SB15 |
1 |
| 23 | 01111031 | Base with Nut & Washer for SB20/ SB30 |
1 |
| 24 | 89021312 | Cable Box for SB/ SR Pump 220V/50HZ; 220V/60HZ; 380V/50HZ. |
1 |
| 25 | 89021505 | Cable Box for SB/ SR Pump 110V/60HZ |
1 |
| 26 | 01031001 | Fan Cover for EPH SB/SR20 SB/SR30 |
1 |
| 26 | 01031002 | Fan Cover for EPH SB/SR10, SB/SR15 Pump |
1 |
| 27 | 01031008 | Fan Cover for EPH SB/SR20, SB/SR30 Pump |
1 |
| 27 | 01031009 | Fan Cover for EPH SB/SR10, SB/SR15 Pump |
1 |
| 28 | 01031007 | Cooling fan for SC SB/SR10, SB/SR15 |
1 |
| 28 | 01031006 | Cooling fan for EPH SB/SR20, SB/SR30 |
1 |
| 29 | 04016014 | Capacitor for SB/ SR10 SB/ SR15 (220V/50HZ) (220V/60HZ) |
1 |
| 29 | 04016015 | Capacitor for SB/ SR20 (220V/50HZ) (220V/60HZ) |
1 |
| 29 | 04016016 | Capacitor for SB/ SR30 (220V/50HZ) (220V/60HZ) |
1 |
| 29 | 04016022 | Capacitor for SB/ SR10/ SB15 (110V/60HZ) |
1 |
| 29 | 04016023 | Capacitor for SB/ SR20/ SB30 (110V/60HZ) |
1 |
| 30 | 04015042 | Overload Switch PE77-6A/250VAC for SB/ SR15 |
1 |
| 30 | 04015015 | Overload Switch PE77-8A/250VAC for SB/ SR15 |
1 |
| 30 | 04015012 | Overload Switch PE77-10A/250VAC for SB/ SR20 |
1 |
| 30 | 04016037 | Overload Switch PE77-13A/250VAC for SB/ SR30 |
1 |
| 31 | 02021039 | Cover for Overload Switch |
1 |
| 32 | 04014018 | Insulation Fitting for Overload Switch |
1 |
Note: 6* 89280103B is 2.0 Union in Black Colour
6* 89280103W is 2.0 Union in White Colour
