Calpeda Pressure Switch รุ่น PMAT
- Pressure switches for use with water in autoclave systems
- The switch ensures automatically the starting and stopping of the
electric pump according to the set pressure values
- Electric contacts: normally closed and made of brass alloy with Ag-Ni
surfacing

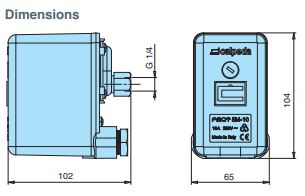

- Terminals with M4 screws and 8x8 mm pressure dice
- NBR rubber membrane with textile insert (food grade for PMAT 5M10, PMAT 5M/T-16, PMAT 5.5M/T-16)
- ¼"F hydraulic connection made of galvanized steel
- Standard protection degree IP 44
- Liquid temperature up to 55 °C
- Max ambient temperature: 55°C
- Tear resistant cable clamps
