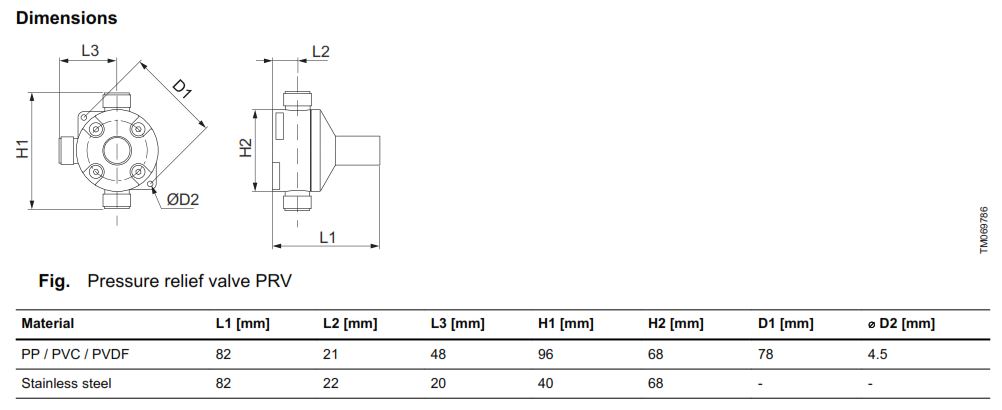

Pressure relief valves PRV
Pressure relief valves PRV protect the pump and the outlet-side installations against excessive pressure. All pressurised
dosing installations should include a pressure relief valve.
Pressure relief valves PRV for small dosing pumps with G 5/8 connections are installed in the outlet line near the pump
using the 2 in-line connections. The side connection leads the relief liquid back into the tank.
• Relief pressure:
• factory-set to 10 bar approximately• factory-set to 16 bar approximately
• Max. operating pressure: 16 bar
• Max. flow rate: 60 l/h
• The flow rate values apply to liquids with a viscosity similar to water• Hose connection set: 4/6 mm, 6/9 mm, 6/12 mm, 9/12 mm
• Pipe connection set (Stainless steel• Diaphragm: PTFE-coated
